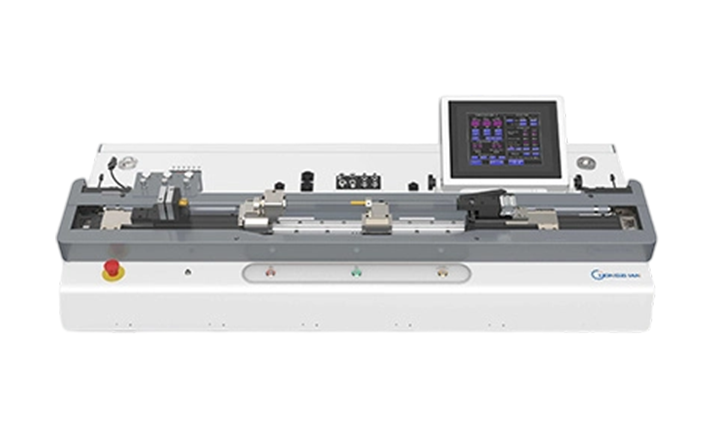

CZBFM-3300系列球囊成型机通过热辐射形式对球囊管进行吹塑，最终形成球囊。球囊成型机集拉力系统、温控系统、压力系统于一体，形成多环式闭环系统，实时反馈设备运行参数并根据设置参数，系统内部自动调整。
| Parameter | Specification |
| Model | CZBFM-3300 |
| Power Supply | AC 210-230V, 50Hz |
| Full-load Power | 1400W* (varies with jacket size) |
| Process Gas | High-purity N₂ & Compressed Air |
| High-pressure N₂ (P1) | ≤6.9 MPa |
| Compressed Air (P2) | 0.5-0.7 MPa |
| Ambient Humidity | 20-75% RH (non-condensing) |
| Ambient Temperature | 5-55°C |
| Molding Pressure Medium | High-pressure Nitrogen |
| Forming Pressure Range (N₂) | 0-6.9 MPa |
| Mold Heating Range | 0-150°C |
| Axial Temperature Uniformity | ±2°C |
| Inner Surface Roughness | Ra 0.4 μm (mold contact areas) |
| Balloon Length Capacity | 0-300 mm |
| Balloon Diameter Range | Φ2-Φ8 mm (customizable) |
| Control System | Programmable Automation |
