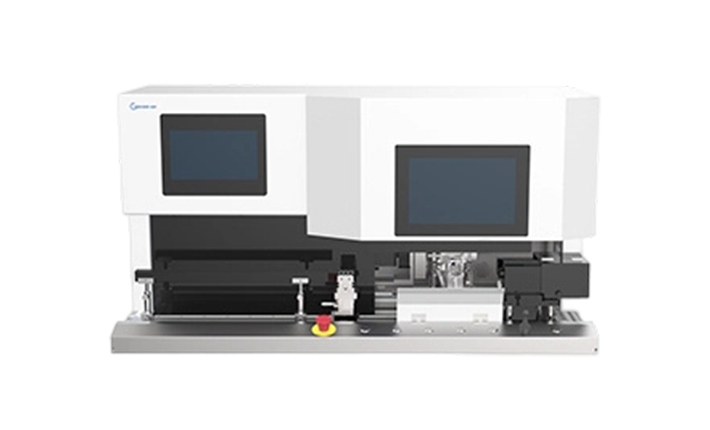

CZCL系列激光焊接机适用于高分子材料焊接。设备利用激光能量将高分子材料焊接在一起。如尼龙、聚氯乙烯、聚氨酯、PET等高分子。设备焊接高分子材料全程可视化，焊接点放大化且运用红外线模拟激光焊接，便于材料批次焊接斑点确认。激光能量与焊接方式根据材料可调整。
Visualization → Lowers operational complexity, improves yield rates.
Parameter Adjustability →Supports multi-material and multi-scenario applications.
Non-Contact Process → Eliminates contamination, extends tooling lifespan.
High-Precision Welding
Micron-level laser focusing enables clean, distortion-free seams without thermal damage.
Real-time weld-spot tracking and quality verification for batch processing.
Adaptive Flexibility
Customizable energy output and welding modes to accommodate material thickness, light transmittance, and complex application scenarios.
Quality Assurance
Infrared simulation predicts weld integrity, minimizing trial-and-error waste.
Delivers medical- and automotive-grade sealing performance and surface flatness.
| Parameter | Specification |
| Model | CZCL4100A/B |
| Power Supply | AC210-230V 50HZ |
| Max Power | 1600W |
| Operating Temperature | 5-40°C |
| Operating Humidity | 0-75% RH (No Condensation) |
| Control Core | Mitsubishi PLC |
| Main Cooling Fan | Ball Bearing Axial Fan |
| CO² Laser Power Range | 0.4W-6W |
| CO² Laser Stability | ≤3% |
| Spot Diameter | 0.3-4.0mm |
| Workpiece Rotation Speed | 0~1100RPM |
| Laser Moving Speed | 0-5mm/s |
| Speed Precision | 0.1mm/s |
| Laser Travel Distance | 0-400mm |
| Auto Spot Adjustment | Installed |
| Auto Workpiece Clamping | Installed |
