球囊拉伸机

球囊拉伸机
应用案例

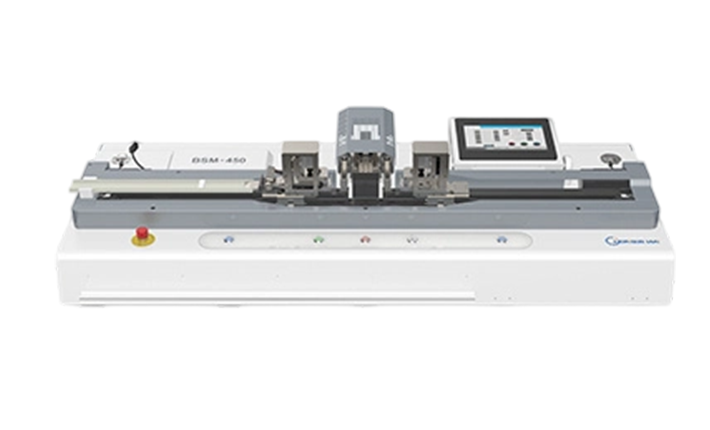

The CZBSM450 Balloon Tube Stretching Machine automates the production of medical-grade balloon precursor tubes via pull-stretch and thermal radiation methods, enabling precise dimensional control for pre-molding processes.

产品参数

Key Component Brands


Drawing ModuleHIWIN KK Module (Taiwan) | High rigidity & precision

Motion Control Core

Mitsubishi PLC FX3U (Japan)
Temperature Control CoreOmron PID Auto-tuning Controller
HMI (Human-Machine Interface)Weintek 10-inch Full-color Touch Panel
Drive MotorDelta AC Servo Motor
Actuators & ValvesFull SMC Pneumatic Cylinders & Solenoid Valves (Japan)
Simultaneous Processing3 products


Technical Specifications


ParameterValue

Operating Voltage/Power

AC 220V, 800W
Air SupplyOmron PID Auto-tuning Controller
Drawing Accuracy±0.01 mm (linear), ±0.01 mm/s (speed)
Drawing Speed Range0-200 mm/s
Mold Temperature Range0-350°C (±2°C)
Simultaneous Processing3 products
Module Stroke0-450 mm
Preset Process Parameters20 programmable recipes
